QT4‑26D Concrete Block Making Machine | Efficient Paving Stone & Interlock Brick Production Equipment_Semi-automatic concrete block machine_Products

Product advantages

Advantage of QT4‑26D Concrete Block Making Machine

1. Multi‑mould Compatibility for Flexible Paving Order Fulfillment

QT4‑26D allows fast mould replacement to produce diversified paving products including permeable paving bricks, interlock paving stones, sidewalk pavers, tactile bricks, slope protection blocks, together with hollow blocks and solid bricks. Factory owners do not need to invest in multiple main machines, which saves substantial capital expenditure on additional equipment procurement and plant layout space. Just changing moulds enables you to handle different infrastructure and landscaping paving orders ranging from municipal sidewalk renovation, community garden paving to river‑bank slope protection projects. Custom‑made special‑size paving moulds are available to satisfy non‑standard dimension requirements from special engineering tenders. You can swiftly adjust product portfolio responding to shifting local market demands and seasonal order fluctuations. Expand your business scope without heavy capital investment and improve your capability to win various project contracts, meanwhile strengthen your competitive edge against competitors with single‑product production capacity.

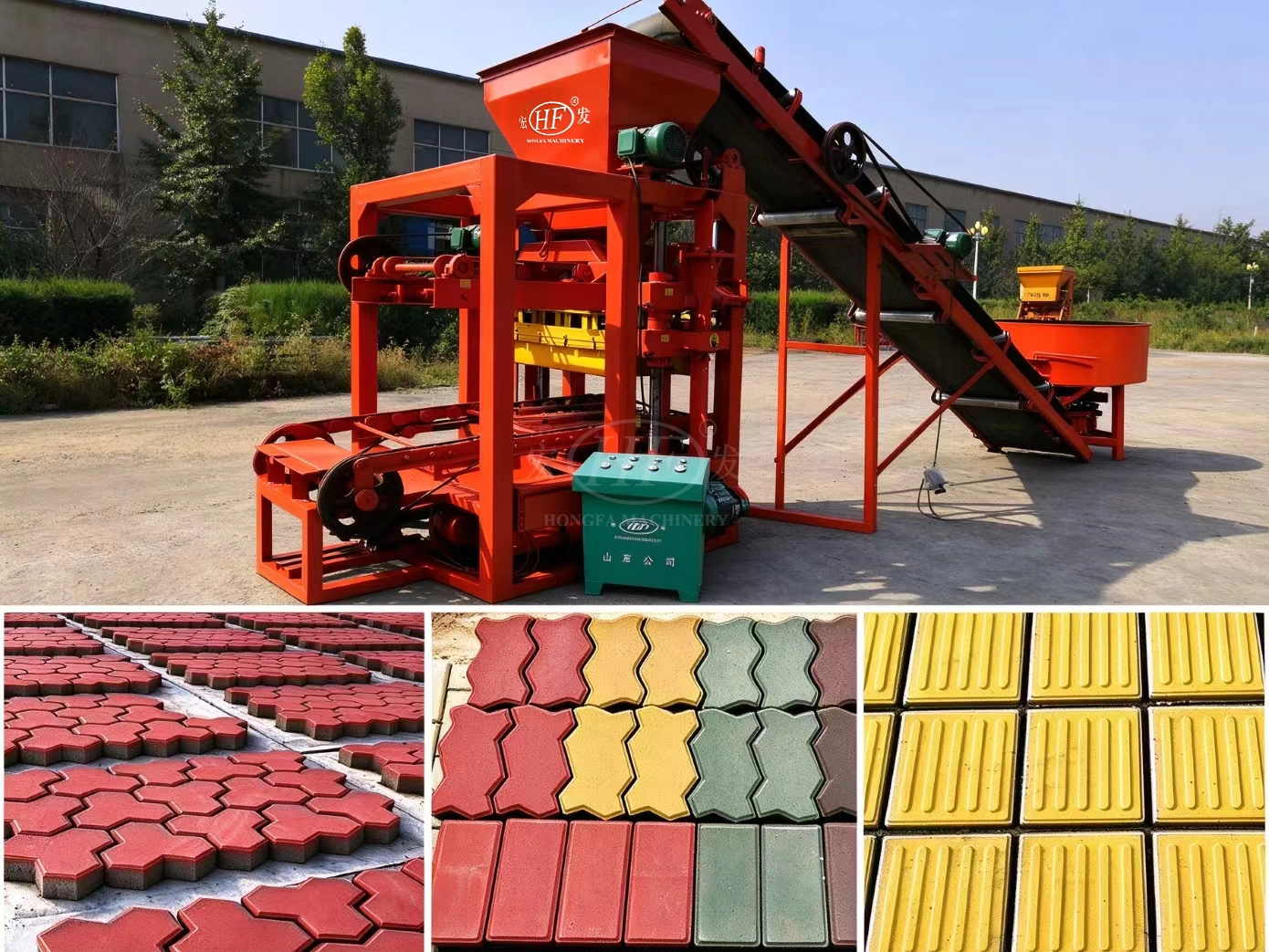

Paver from QT4‑26D Concrete Block Making Machine

2. Dual‑Vibration Forming Delivers Premium‑Quality Paving Bricks & Minimize Waste

Adopting combined table vibration plus upper‑head vibration system with vibration speed 2800‑4200 r/min, forming cycle 26 seconds per mould. Dual vibration compacts concrete mixture thoroughly and drives mortar fully filling every corner and cavity inside the mould cavity. Output paving bricks feature high density, good strength and sharp edges with consistent dimensional accuracy across every batch. Less rejects such as crack, delamination and chipped corners, effectively cutting raw‑material waste brought by defective products. Superior brick quality helps you meet strict export & municipal project quality standards, avoiding financial loss caused by rejected goods, goods return and project penalty clauses, and raising your finished‑brick selling price for higher profit per unit. Reliable finished‑goods quality also helps you build good market reputation and gain repeated orders from engineering contractors.

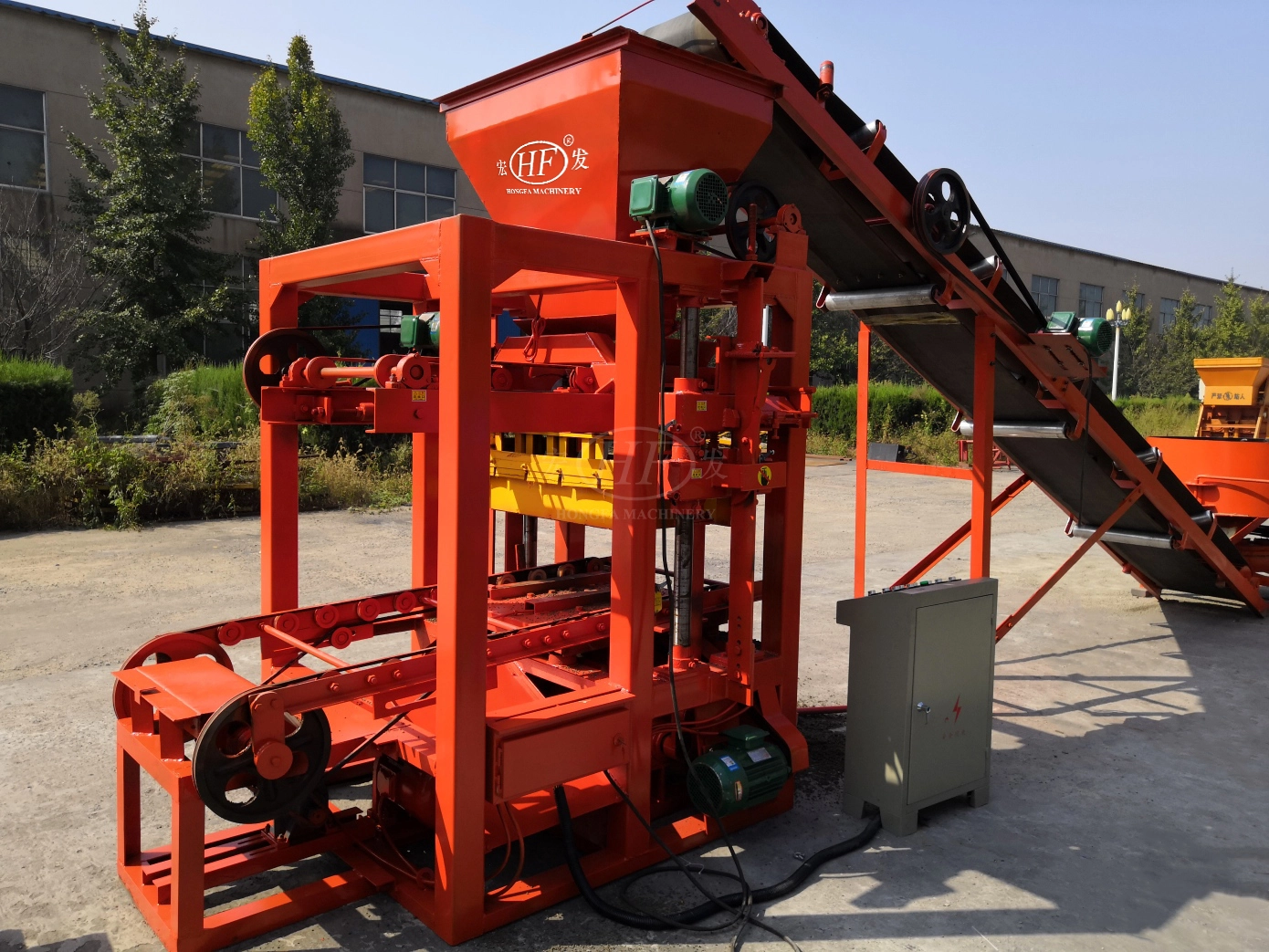

QT4‑26D Concrete Block Making Machine

3. Wide Raw‑material Adaptability, Cut Paving Brick Production Cost & Boost Profit

This machine works well with locally accessible low‑cost materials: stone dust, river sand, mine slag, fly ash, gravel, tailings and other industrial waste residues besides cement and aggregate. You can make full use of cheap local feedstock to save long‑distance raw‑material transportation expense as well as cross‑region material purchasing fees. It tolerates a reasonable range of material moisture proportion and aggregate grading fluctuation, bringing greater flexibility for on‑site batching work. When cooperating with simple mixer and belt conveyor, stable paving brick production can be achieved without complicated pre‑treatment equipment for raw materials. Lower material cost directly improves your profit margin for every paving brick produced. Making use of industrial waste also complies with local environmental regulations, helping you qualify for green‑project bidding opportunities which are inaccessible for many peers.

4. Reinforced Mechanical & Electrical Protection, Less Downtime for Continuous Mass Production

Heavy‑duty gantry steel frame plus four vertical wear‑resistant guide sleeves greatly improve anti‑vibration performance, preventing frame deformation and position offset under long‑time continuous paving‑brick manufacturing even under high‑intensity daily shift operation. Mechanical limit switches work together with electric control to avoid damage caused by mis‑operation such as wrong button triggering or sequence error. Both electric and manual feeding modes are available for dual‑backup production. You can switch to manual feeding to keep production running if electric feeding meets temporary issue, instead of halting the whole production line. Less unexpected shutdown guarantees on‑time delivery for time‑sensitive paving‑brick construction orders, avoiding liquidated damages and customer dissatisfaction caused by delayed shipment. The coordinated mechanical‑electrical protection also extends service life of core wearing parts and lowers long‑term spare‑part replacement expenditure.

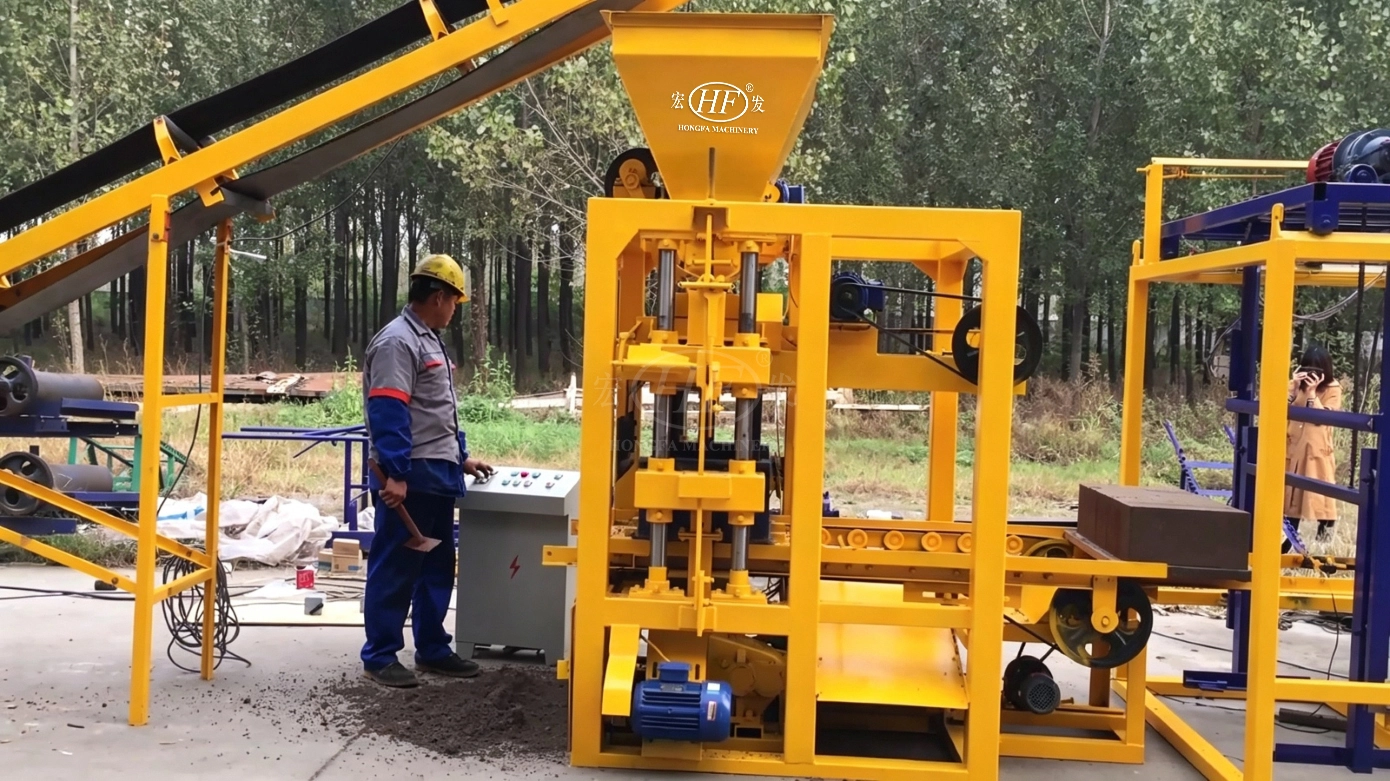

QT4‑26D Concrete Block Making Machine

5. Compact Footprint & Simple Production Line Setup for Fast Project Launch

Working dimension: 3600×1700×2560 mm. Compact overall size, only flat hardened ground is required instead of expensive heavy civil foundation and complicated ground‑anchoring construction work. You can build a complete paving‑brick production line by matching with J350 concrete mixer and 6‑meter belt conveyor; the layout supports both inline and T‑type installation to adapt different plant space conditions. Short installation & commissioning period, on‑site assembly and trial‑run can be finished within short cycle after equipment arrival. Perfect for new small brick plant setup or adding paving‑brick production line to existing workshops without large‑scale reconstruction. Accelerate your return‑on‑investment schedule without huge infrastructure budget. It is also suitable for investors with limited factory area who want to step into paving‑brick manufacturing business with moderate upfront investment.

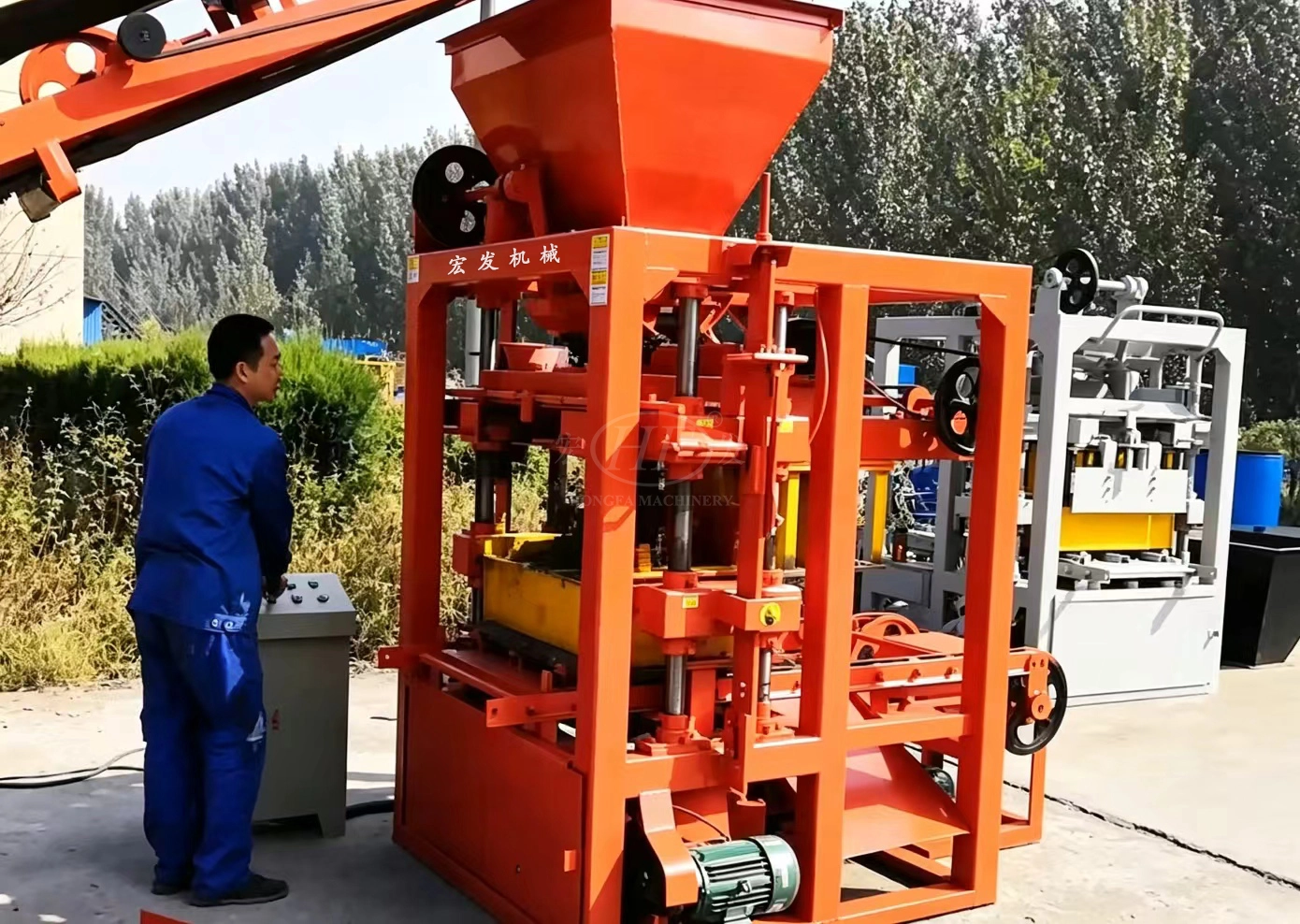

QT4‑26D Concrete Block Making Machine

6. Well‑matched Output for Medium‑small Factories, Low Labor Consumption to Save Operational Cost

Electric mould pushing reduces workers’ physical workload and relieves operators from heavy manual mould pulling work. Daily output reaches 3000‑4000 pieces, perfectly matching order volume of most small‑to‑medium paving‑brick factories without over‑capacity investment which causes idle equipment and capital tie‑up. Operation logic is user‑friendly with centralized control layout. General workers can master full paving‑brick production workflow after short‑period training, no deep technical background required. No need for high‑salary skilled technicians for daily routine operation. Help factories keep labor cost under control, which brings obvious economic benefit especially for regions with high labor expense. Even with limited‑size work team, the plant can finish daily production target steadily, helping you optimize overall factory operational expenditure.
